Mismo Systems

Information Barrier

Check the IB mode for your organization:

Install-Module -Name ExchangeOnlineManagement -Scope Currentuser

Import-Module ExchangeOnlineManagement

Connect-ExchangeOnline or Connect-IPPSSession

Get-PolicyConfig

The multi-segment mode enables you to assign users in your organization to up to 10 segments in information barriers instead of being limited to just one segment

Set-PolicyConfig -InformationBarrierMode 'MultiSegment'

Use the Get-OrganizationSegment cmdlet to view organization segments in the Microsoft Purview compliance portal -

Import-Module ExchangeOnlineManagement

Connect to Security & Compliance PowerShell

Connect-IPPSSession

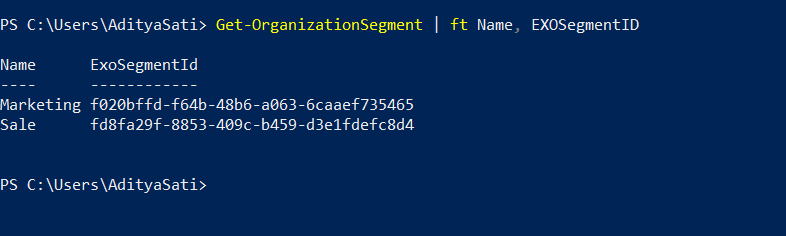

Get-OrganizationSegment | ft Name, EXOSegmentID

 Information barrier modes and Teams

• Open: This configuration is the default IB mode for all existing groups that were provisioned before information barriers were enabled. In this mode, there are no IB policies applicable.
• Implicit: This configuration is the default IB mode when a Team is provisioned after enabling information barriers. Implicit mode allows you to add all compatible users in the group.

 Once you activate IB policies on your tenant, you're required to update mode of your existing teams to Implicit to ensure that existing teams are IB-compliant.

Change information barriers modes with a PowerShell script | Microsoft Learn

To enable Microsoft 365 group membership-based access and sharing control for all Implicit mode sites in your organization, run the following command as a SharePoint Administrator:

This following command controls the sharing or communication between segmented users of team channel:

When admin try to add both segmented users who are subjected to the block restricted IB policy to the team channel, admin won’t be able to add both user together.

Install-Module -Name Microsoft.Online.SharePoint.PowerShell -Scope CurrentUser

Connect-SPOService

Set-SPOTenant -IBImplicitGroupBased $true

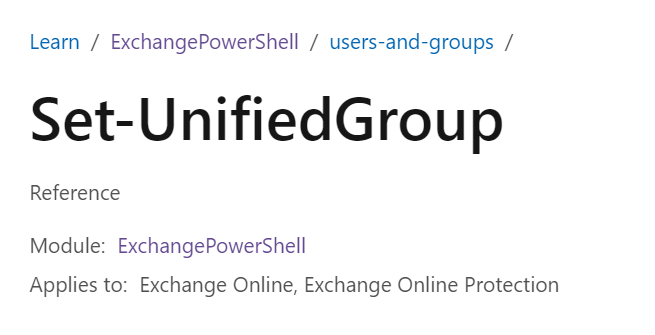

To configure the Implicit mode for a Microsoft 365 Group, you'll use the following PowerShell command:

Import-Module ExchangeOnlineManagement

Connect-ExchangeOnline

Set-UnifiedGroup -InformationBarrierMode Implicit

Information barriers modes and OneDrive:

Commands to check and remove the segment associated with user’s OneDrive:

Get-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test1ib_mismosystems_com | Select InformationBarriersMode

Get-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test2ib_mismosystems_com | Select InformationBarriersMode

Get-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test1ib_mismosystems_com | Select InformationSegment

Get-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test2ib_mismosystems_com | Select InformationSegment

Set-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test2ib_mismosystems_com -RemoveInformationSegment fd8fa29f-8853-409c-b459-d3e1fdefc8d4

Set-SPOSite -Identity https://mismosystems-my.sharepoint.com/personal/test1ib_mismosystems_com -RemoveInformationSegment f020bffd-f64b-48b6-a063-6caaef735465

If all the segments of a OneDrive site are removed, the IB mode of the OneDrive is automatically updated to Open.

To update a OneDrive site IB mode to Open, run the following PowerShell command:

Set-SPOSite -Identity <siteurl> -InformationBarriersMode Open

Information barriers and SharePoint and OneDrive:

Sharing sites for IB modes

Sharing of sites with users is based on the IB mode of the site.

Open:

When a site has no segments and site's information barriers mode is set to Open:

The site and its contents can be shared based on the information barrier policy applied to the user. For example, if a user in HR is allowed to communicate with users in Research, the user will be able to share the site with those users.

Explicit mode:

For a user to access SharePoint sites that have segments and site's information barriers mode is Explicit:

• The user's segment must match a segment that is associated with the site.

AND

• The user must have access permission to the site.

Non-segment users can't access a site associated with segments. They'll see an error message.

Enable SharePoint and OneDrive information barriers in your organization

To enable information barriers in SharePoint and OneDrive, run the following command:

Set-SPOTenant -InformationBarriersSuspension $false

After you've enabled information barriers for SharePoint and OneDrive in your organization, wait for approximately 1 hour for the changes to take effect.

Remove a policy and segment :

Manage information barriers policies | Microsoft Learn

1.Set IB policy in Inactive state

Set-InformationBarrierPolicy -Identity BlockCommunication-MarketingToSale -State Inactive

Or Set-InformationBarrierPolicy -Identity 8d57ed43-7fc4-40f1-9210-d3b1097f7fab{Guid} -State Inactive

Guid of IB policy:

Get-InformationBarrierPolicy | ft Name, Guid

2. Edit the segment

use the UserGroupFilter parameter to disassociate users from the segment prior to removal.

Get-OrganizationSegment | ft Name, ExchangeObjectId

Set-OrganizationSegment -Identity GUID -UserGroupFilter "attribute -eq 'attributevalue'"

Set-OrganizationSegment -Identity Sale -UserGroupFilter "Department -eq 'FakeDept'"

3. To apply your changes, use the Start-InformationBarrierPoliciesApplication cmdlet.

Start-InformationBarrierPoliciesApplication -CleanupGroupSegmentLink

The CleanupGroupSegmentLink attribute removes group associations with the segment with no user associations.

4. Remove-InformationBarrierPolicy

Remove-InformationBarrierPolicy -Identity GUID

5. Remove segment

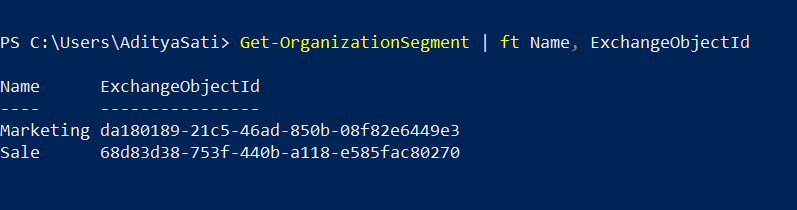

Get-OrganizationSegment | ft Name, ExchangeObjectId

Remove-OrganizationSegment -Identity GUID

Remove-OrganizationSegment -Identity da180189-21c5-46ad-850b-08f82e6449e3{ExchangeObjectId (not the ExoSegmentId)}

Stop a policy application(If Required)

After you have started applying information barriers policies, if you want to stop those policies from being applied, use the following procedure. It will take approximately 30-35 minutes for the process to begin.

Get-InformationBarrierPoliciesApplicationStatus

Note the application's GUID.

Stop-InformationBarrierPoliciesApplication -Identity GUID
